Barkman Keystone Compac III
(0)

Barkman Keystone Compac III

C$15.84 Excl. tax
Call to Order

Special Order Item - Contact us to order!
-
Sold Individually Read more.

Product description

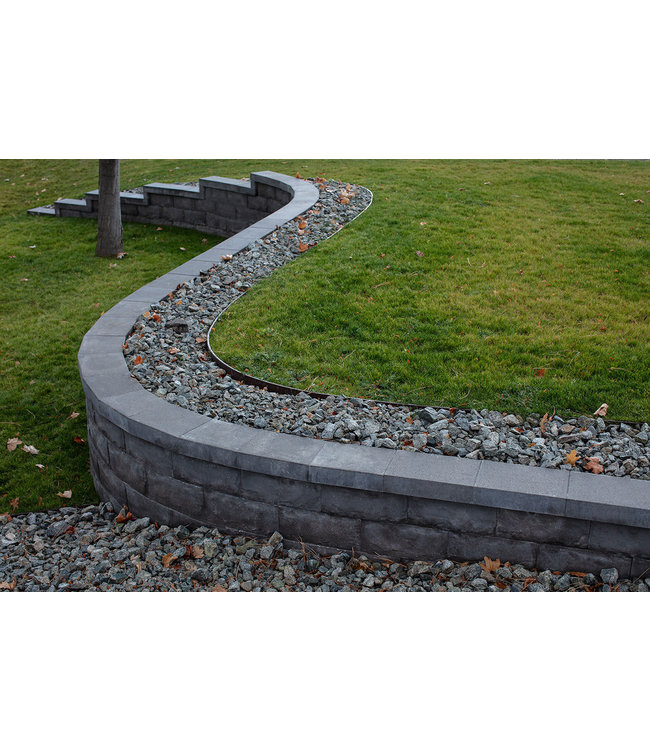

Keystone Compac III combines style, performance and cost-saving versatility into one wall system. It’s favoured by architects, engineers and contractors worldwide for its function in both small and large-scale projects.

Using the proven Keystone pin connection system, Keystone Compac® III is the perfect solution for gravity walls up to 4 feet in height and large-scale projects over 60’h. Corner and coping units are also available.

Maximum Versatility and Performance Due to:

  • A design that results in decreased unit weight, effectively reducing shipping costs while maintaining structural integrity.
  • A design that allows for various positive connections with reinforcement to build engineered walls over 60 feet (18.2m) tall.
  • Increased vertical drainage through face units.

Easier Installation Due to:

  • A block shape that allows for tight radius curves and vertical core alignment.
  • A shorter tail design that allows for easier handling in the field.
  • A triangular shaped pin receiving hole that allows for installer-friendly construction adjustments.
  • Vertical or battered setback construction options.

Product Notes:

Use 2 fibreglass pins (123168) per block to connect. For near vertical batter, place pins in the front hole location. For 8.5 degree batter, place pins in the back hole location. For 4 degree batter, alternate pin location starting with back pin location on the first course, front location on the second course and alternating on consecutive layers. Alignment pins sold separately.

Specifications

Article number
BRK139848
EAN Code
678504271778
SKU
139848

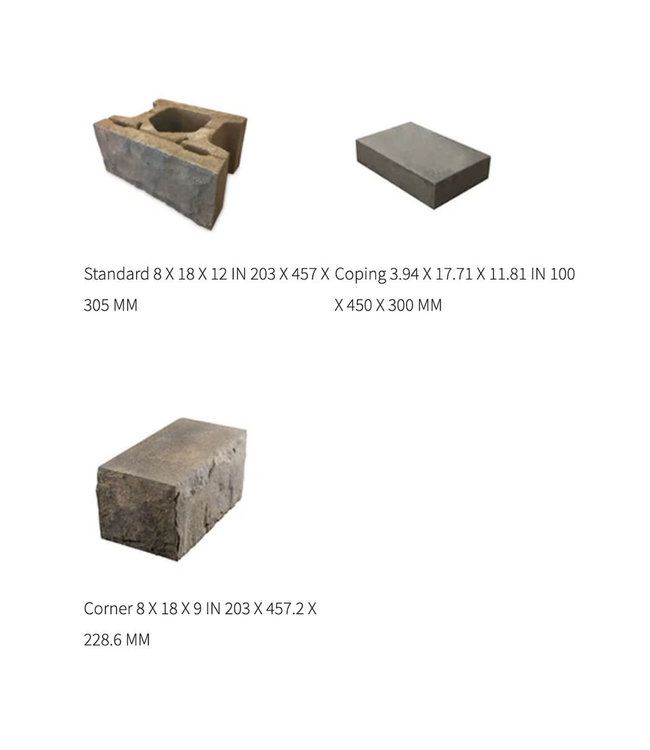

Dimensions (in)
Standard - 8 x 18 x 12, Corner - 8 x 18 x 9, Coping - 3.94 x 17.72 x 11.81
Dimensions (mm)
Standard - 203 x 457 x 305, Corner - 203 x 457.2x 228.6, Coping - 100x 450 x 300
Applications
Retaining Wall, Support, Freedstanding Wall
