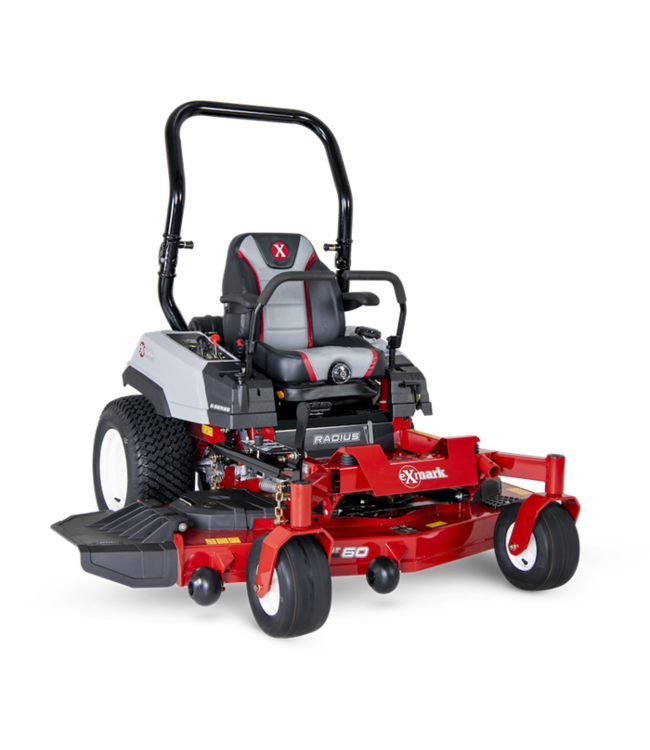

Exmark EXRZS691GKA523A3 Radius S-Series 52-inch UltraCut Series 3 Deck
(0)

Exmark EXRZS691GKA523A3 Radius S-Series 52-inch UltraCut Series 3 Deck

C$13,699.95 Excl. tax
Call to Order

Whether you’re upgrading from an older machine or are looking to add another zero-turn to your trailer, the new Radius S-Series delivers an unbeatable combination of durability, operator comfort, performance, and value. Read more.

Product description

Choose from 48-, 52-, or 60-inch UltraCut Series 3 side-discharge cutting decks, each equipped with our exclusive flow-control baffles for a superior cut quality. An adjustable full-suspension operator seat and isolated footrest provide superior all-day mowing comfort.

Radius S-Series models are also designed for maximum durability with reduced maintenance. With just two grease points to lubricate annually, low-maintenance Hydro-Gear integrated transmissions, and reliable Kawasaki commercial engines, Radius S-Series models are built for the long haul.

UltraCut Deck Technology

Exmark’s exclusive UltraCut decks are featured on Radius models. Every UltraCut cutting deck features Exmark’s exclusive maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime, combined with zero maintenance.

Heavy Duty Fabricated Frame

With a fully welded frame built from 2x3-inch frame tubes, the Radius design places major components including the engine, hydro drive system and fuel tank lower in the frame. The lower center of gravity and better mass centralization results in increased traction and stability, with improved handling.

Height of Cut Made Easy

Our patented height of cut adjustment system is user friendly and allows the operator to quickly and accurately select height of cut from the operator seat.

Adjustable Rollover Protection System (ROPS)

A new adjustable ROPS system is easy to fold up-and-down, and is built from round tubes for easy, flexible accessory placement. (Available Spring 2023)

Full-Suspension Operator Seat

Radius S- and X-Series models feature an adjustable full-suspension operator seat, with three inches of suspension and an EVC stretch foam base for superior all day mowing comfort.

Fully Guarded Engine

With strong steel lower protection and durable composite upper protection, the Radius S-Series engine is well guarded against damage from foreign objects.

Specifications

Article number
EXMEXRZS691GKA523A3
SKU
EXRZS691GKA523A3
Engine Make
Kawasaki FX691V V-Twin
Deck Size
52"
Deck Style
Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
Cutting Height
1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Hydro Drive System
Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Speed
Infinitely variable speed selection from 0–9.0 mph (14.5 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
Fuel Capacity
7-gallon (26.5-L) single fuel tank with single fill location.
Seat Comfort
Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch
Features
UltraCut Series 3 Deck, Full-Suspension Seat, Engine hour meter, cup holder, tow hitch and jack receiver
Front Casters
13 x 6.5-6, smooth tread, pneumatic. Caged Roller Bearings (126-3289)
Drive Tires
23 x 9.5-12 Super Turf
Warranty
4 Year Limited Warranty Consumer and Commercial
